Left Or Right Side Dual Motor Golden Tecnnologies

(Click to see larger image and other views)

SKU: p528

Brand: Golden Technologies Parts

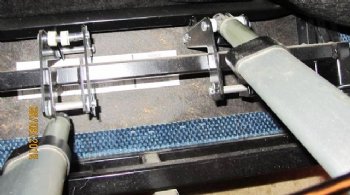

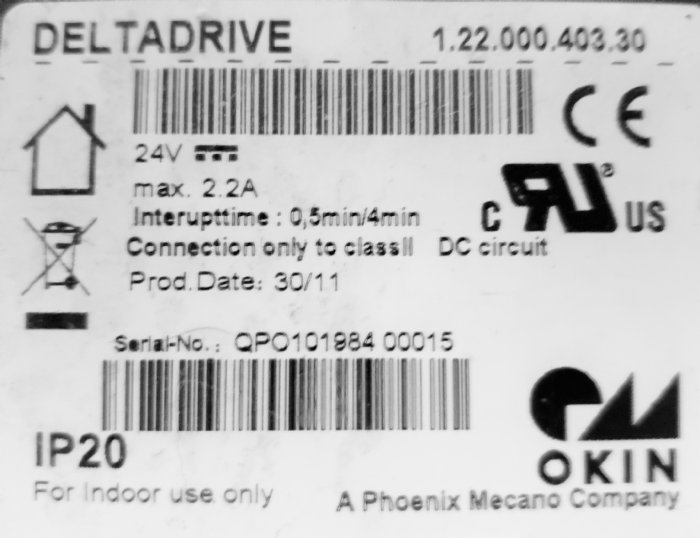

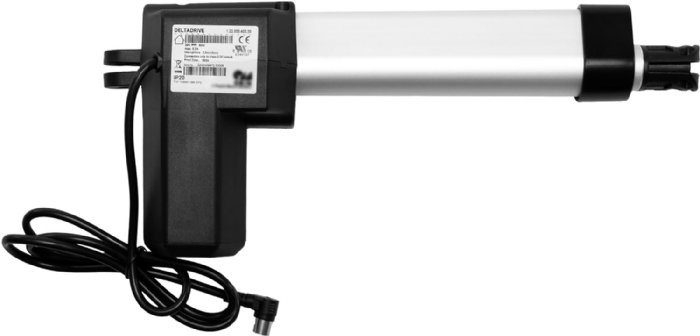

Left or Right Side Dual Lift Motor for Golden Technologies GMOKI-28 for 500lb Capacity Dual Motor Wide Lift Chair. PR-501T-28D Deltadrive 1.22.000.403.30 Okin Replacement Motor. It is ofter advised to replace both of these synchronous lift motors at the same time.

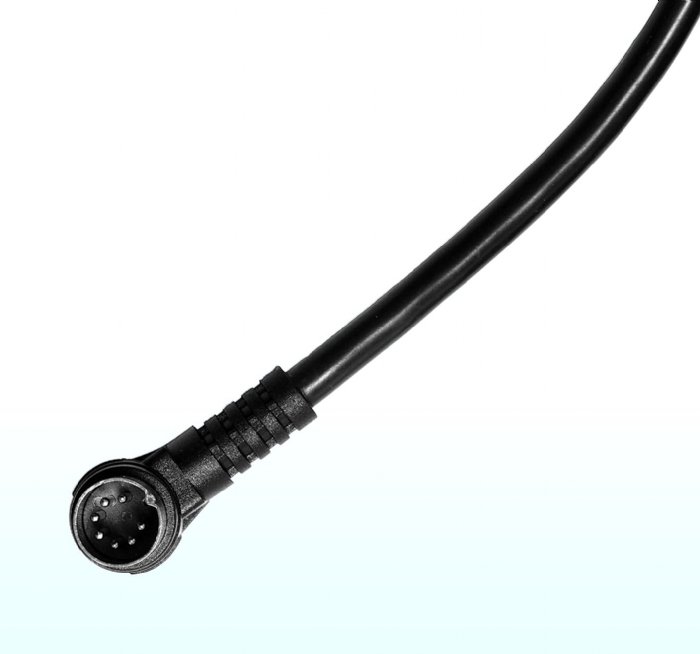

It has only one cord coming off the motor with a round 90 degrees DIN plug with seven pins. It plugs into the chairâ€™s control box.

You must sync these dual motors after installation.
It is recommended that you replace two new motors at the same time.

How to Sync Golden PR531-M26 500 lb capacity and Med-Lift Model 3653 side by side dual motors. 1.22.000.403.30 and 1.22.000.709.30 dual lift motors:

1. Unpin the forkhead shaft end of both motors.

2. Run both motors out as far as they will go.

3. Then run them all the way back in.

4. Then run them all the way back out and pin them up to the mechanism.

5. Then run the chair all the way back down

6. Then with no one sitting in the chair run it all the way up and all the way back down.

7. Now the motors should be synchronized.

$289.00

List Price: $386.00

You Save: $97.00 (25%)

Availability: Typically ships within 10 days

Golden GT Serial Number (Please include your serial number from bottom back left cross brace behind chair) You have 70 characters left. Do not use HTML.
