Dewert Ultra Control Box 50757 / 990.762.001, 990.761.001 Replacement Kit

Dewert Ultra Control Box 50757 / 990.762.001 / CTLDC1301 Replacement Set Up w/ Free Hand Control including all new cables.

This is a high-quality replacement Kit to replace your old Dewert Ultra Control box which is obsolete.

You are replacing all the electronic parts except your working Pride Lift Chair Megamat MBZ Motor/Actuator pictured.

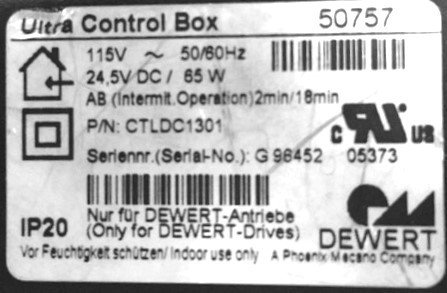

The Original Label On Most Obsolete Models Reads:

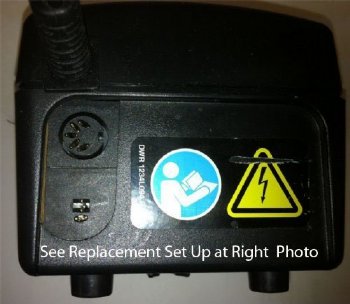

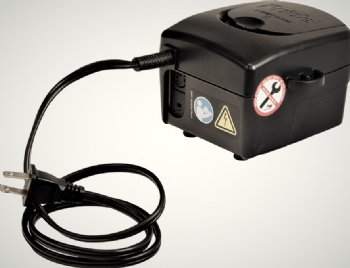

The old power supply and the two-part cable that was used with it are pictured for reference purposes. These are the obsolete parts you are replacing with this new solution.

 All of your questions should be answered below.

You will receive a complete custom kit that includes:

1) Y harness
    Connects hand control and Motor to the new power supply.

2) New Style Power Supply
     With green indicator light.

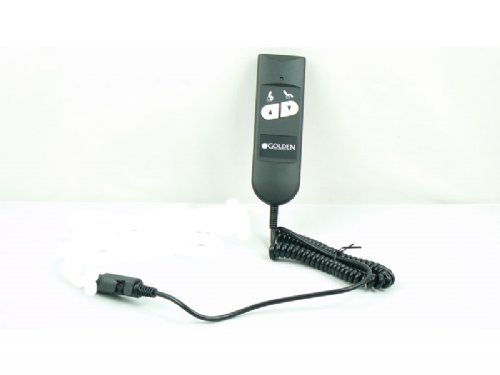

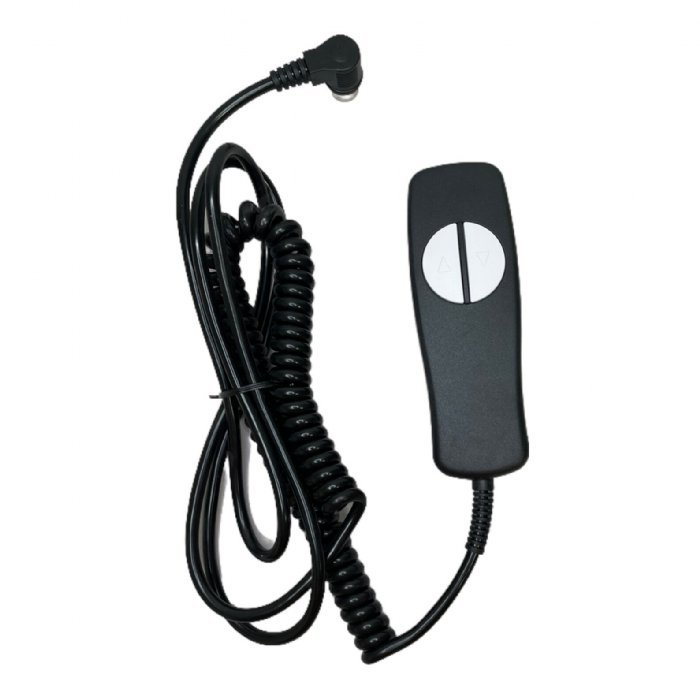

3) New Long Lasting 2 Button Hand Control
    If your power supply is bad your hand control may be bad also.

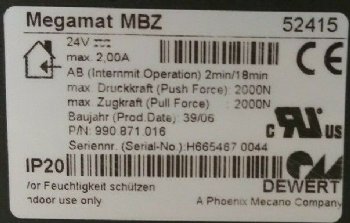

The only old part you use over is your Megamat MBZ or other motors with a single two-prong cable shown in Photo to right.  Please view the details below and view the photos for connection instructions.

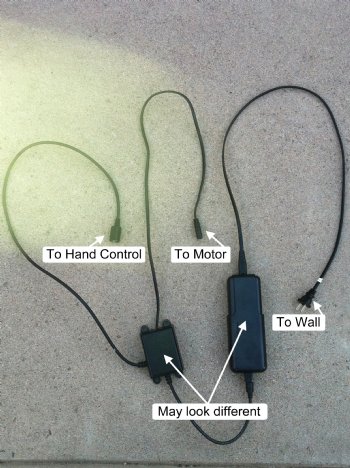

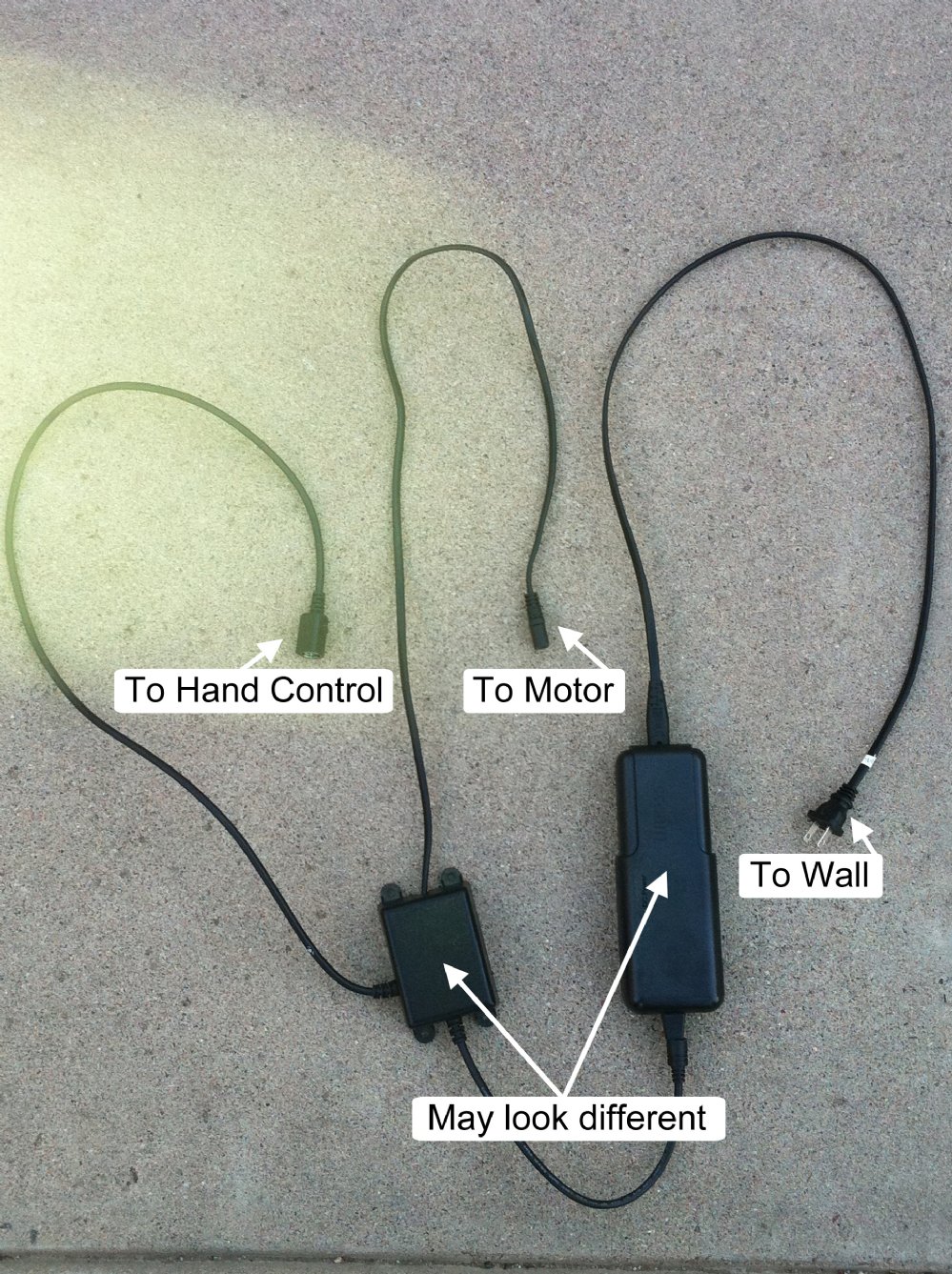

The male two-prong straight or curly cable from your Megamat MBZ motor plugs into the cable with the female two-slot cable marked "To Motor" in the photo.

Your new hand control plugs into the round 5 PIN female DIN connector marked "To Hand Control"

Your new power supply plugs into the wall with the provided AC cord.

If you have a problem please review the instructions on this page and the pictures above. It will work as described. If you are still having difficulty email support@liftchair.com for further help. If you need a new motor and have purchased this p419 we will discount a new Megamat MBZ replacement motor for only an additional $169.00 charge, shipping included.
