PR514-Control Box Cable and 29 V 3 Amp Power Supply

(Click to see larger image and other views)

SKU: PR514-3 Amp Combo

Brand: Golden Technologies Parts

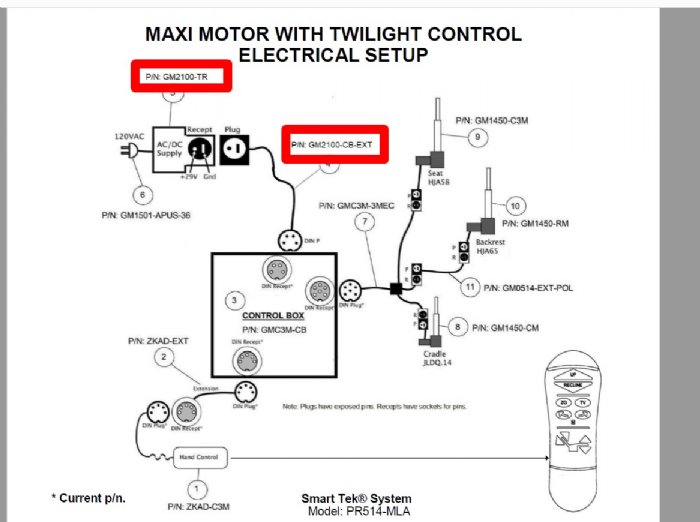

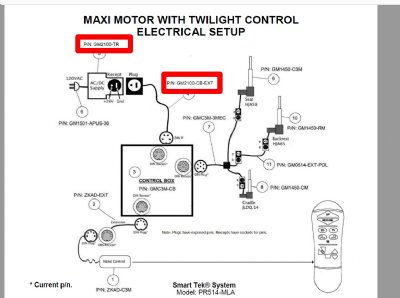

29 VDC 3 Amp Power supply GM2100-TR and a single DC cable GM2100-CB-EXT to the Control Box for PR514 Golden Technologies Cloud with Twilight Lift Chair.

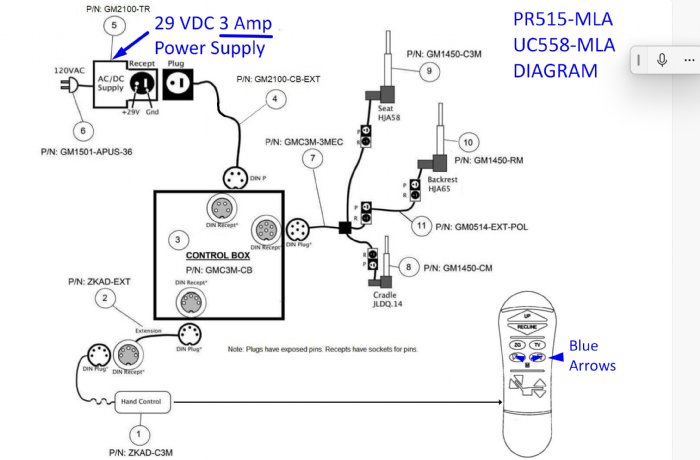

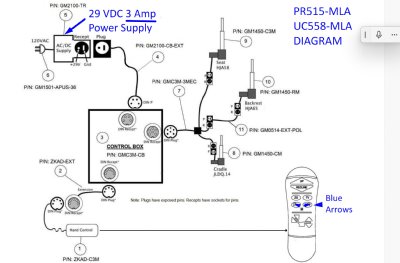

The second photo is of the hand control for your PR514-MLA and UC558-MLA for identification purposes. It is not included.

If you are trying to troubleshoot and repair electrical issues with a model PR514-MLA Lift Chair by Golden Technologies that has the original set up using two 2 amp power supplies and a Y Cable connected to the control box it is highly advisable to replace them with this single 3 amp power supply as the first step if fixing your PR514-MLA.

The original PR514-MLA and UC558-MLA lift chairs came with TWO 29V 2 Amp power supplies and a Y cable connecting them to the GMC3M-CB Control Box. This gave you 4 Amps total power.

The newer versions of the PR514-MLA and UC558-MLA came with ONE 29V 3 Amp power supply and one cable connecting to the GMC3M-CB Control Box.

Using a single 3 amp power supply has proven adequate. All the newer versions of the PR514 were distributed with 29V 3 Amp power supplies.

Your chair was never intended to be run off of one 29 V 2 A power supply. Many dealers assumed all the power supplies were the same and accidentally delivered these PR514-MLA and UC558-MLA lift chairs with the wrong 29V 2 Amp power supply.

Running all three motors at once can draw more than 2 amps at the same time. It can cause overheating or damage to the components.

Link to order

GMC3M-CB PR514 Cradle Control Box

https://www.liftchair.com/gmc3m-cb-pr514-cradle-control-box-p2648.htm

$122.00

List Price: $159.00

You Save: $37.00 (23%)

Availability: Typically ships within 14 days
