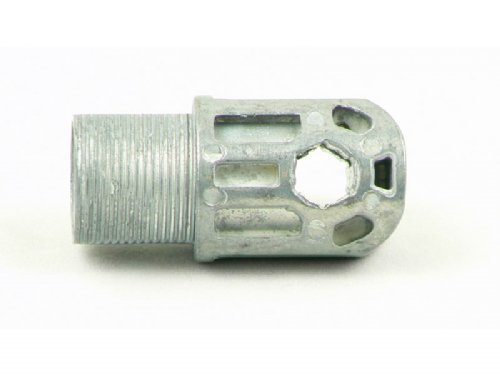

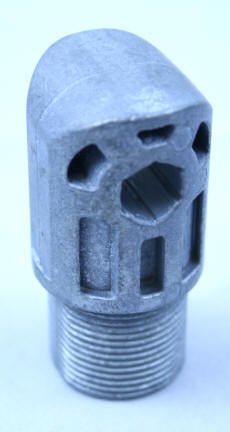

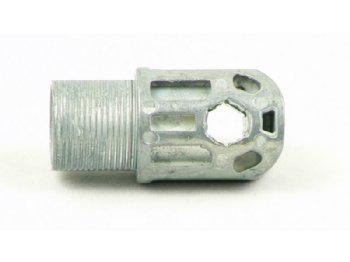

Okin Metal Fork Head Left Hand Threads

(Click to see larger image and other views)

SKU: P102

Brand: Okin Parts

For Deltadrive Motor by Okin only. (Reverse left-hand threads onto the end of stroke tube)

2.00.717.363.30 This forkhead only fits Okin and Limoss brand motors in lift chairs with only one motor. Some dual motor lift chairs have smaller diameter forkheads and this one will be too large for them.

(Does not fit FBS, HHC, Dewert or Chendi Do not order for these brands, and if you do because you are stubborn, do not try to install it. You will damage the threads and it will not be refundable or returnable.

You install this forkhead by first removing any broken debris from the old forkhead. You can use needle-nose pliers to spin out and full pieces remaining down in the stroke tube and then clean the threads with an old toothbrush. Then screw in your new forkhead all the way counterclockwise or left-handed turn.

Then gently turn your stroke tube itself down counterclockwise until it bottoms out and then bring the stroke tube back out about 1 or 2 turns so it is not installed too short. (The stroke tube is the 1" by about 11" aluminum tube that the forkhead attaches to and the stroke tube screws counterclockwise down into the actuator and bottoms out against the gearbox cover.) What you accomplish by doing this is that you time your actuator so that it will not retract too short and over recline the chair to flat and break the spindle nut on the inside bottom part of the spindle or the forkhead you just replaced on the terminal end of the spindle. You can start out with 2 full turns out and then go back and make it only one full turn if your chair is not reclining as flat as it did originally.

Part Type: Motor Component

Manufacturer: Okin

$42.95

List Price: $65.00

You Save: $22.05 (34%)

Availability: Typically ships within 21 days
