Berkline / CIAR Power Recline Replacement Motor Complete

(Click to see larger image and other views)

SKU: p455

CIAR Berkline Power Recliner Replacement Motor Complete:

Includes:

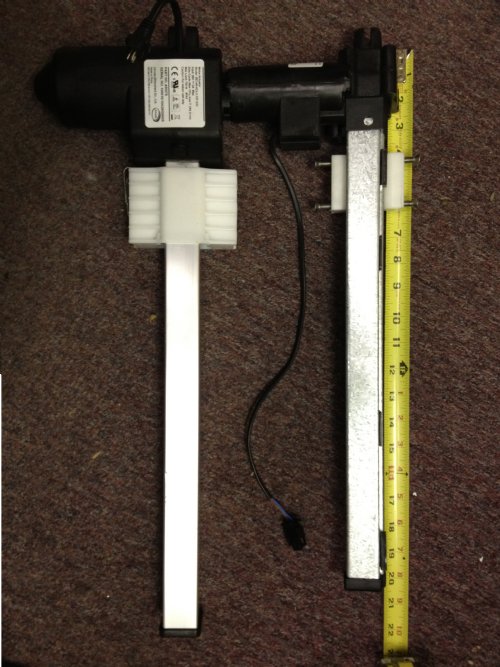

p 455 Motor / Acctuator Floating Style Only Attaches To Front Moving Block And Rear Base Rail. (No Front Bracket That Screws to Front Rail) As shown in photo.

Chair Brand: CIAR

Part Type: Button or Switch

Part Type: Motor

Part Type: Transformer

Part Type: Cable

$279.00

List Price: $369.00

You Save: $90.00 (24%)

Availability: Typically ships within 30 days

Please enter your 6 digit Limoss or 11 digit JLDQ part number. (ie. 11.156.333) You have 30 characters left. Do not use HTML.

Previous Item

Next Item

Product Details

This motor is custom built to order and may take up to 20 days to ship.

(If your Berkline Motor does not look like this photo and has a bracket with two screws for the front base rail see this other link:
p90 Berkline Motor, Refined Mechanics)

DC Power Supply

Cable and Button Control

The appearance of this kit will vary from the photograph.

Installation Guide:

This motor will require a change to a 2" x 2" angle iron base rail on your chair or sofa, instead of the 3/4" x 3/4" angle iron base rail in the bottom front of your existing Berkline Power Furniture. This is needed to bring the ottoman completely closed. You will also have to drill holes in the new base rail so that you can mount the base rail to the side rails, as well as the small bracket in the center to mount the motor. The hole for the side rails will need to be drilled towards the front edge of the new 2" x 2" angle iron base rail.
(The 2' x 2" angle iron at the base rail can be purchase at the hardware store. They can usually cut it for your also)
